The DC13000 series consists of rooftop HVAC units engineered for mobile applications, for example vehicles and machinery used in mining operations. Designed to withstand harsh environments, these systems deliver reliable heating and cooling while maintaining stable cabin conditions under extreme operating conditions.

With a rugged construction and performance optimized for continuous duty, the DC13000 series ensures dependable climate control where durability and reliability are essential.

The DC13000 series consists of rooftop HVAC units engineered for mobile applications, for example vehicles and machinery used in mining operations.

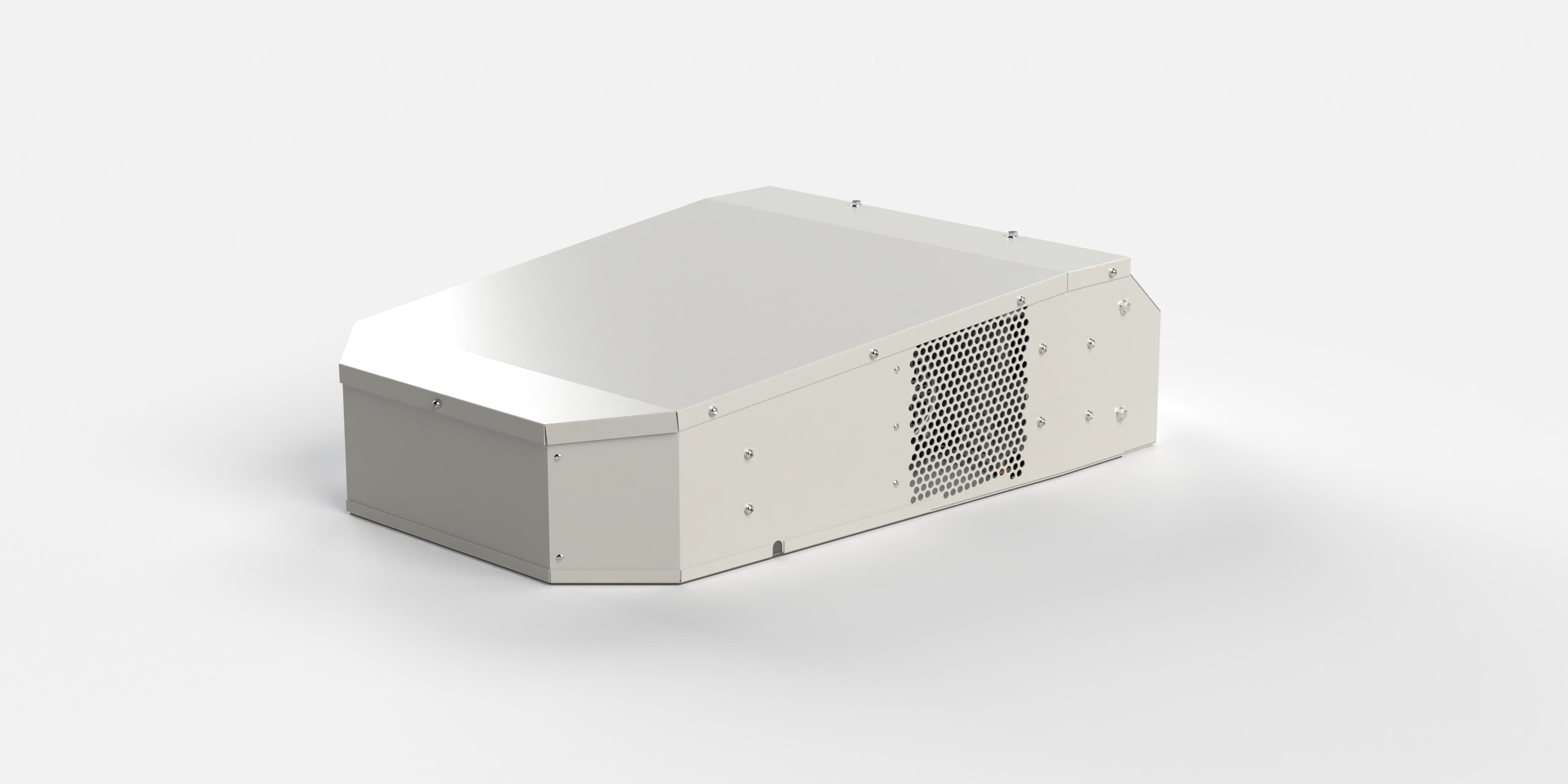

DC13000

| Parameter | Value |
|---------|--------------------|
| **Temp control** | |
| Cooling capacity 630 Vdc model¹ | 4,8 kW |
| COP cooling 630 Vdc¹ | 2,8 |
| Cooling capacity 350 Vdc model¹ | 4,8 kW |
| COP cooling 350 Vdc¹ | 2,8 |
| Cooling capacity 48 Vdc model¹ | 4 kW |
| COP cooling 48 Vdc¹ | 2,8 |
| Cooling capacity 24 Vdc model¹ | 4 kW |
| COP cooling 24 Vdc¹ | 2,8 |
| Heating capacity electric 630 Vdc model | 1,5 kW |
| Voltage for heating capacity electric 630 Vdc model | 850 Vdc |
| Heating capacity electric 350 Vdc model | 1,5 kW |
| Voltage for heating capacity electric 350 Vdc model | 400 Vdc |
| Heating capacity electric 48 Vdc model | N/A |
| Voltage for heating capacity electric 48 Vdc model | N/A |
| Heating capacity electric 24 Vdc model | N/A |
| Voltage for heating capacity electric 24 Vdc model | N/A |
| Max airflow indoor (free blowing) | 800 m³/h |
| Refrigerant | R134A (non-flammable, A1, allowed in EU for mobile applications, cooling batteries and equipment). R1234yf or R513a on request |
| Max ambient temperature² | 55 °C |
| Min ambient temperature | -15 °C |
| Max indoor temperature | 40 °C |
| Min indoor temperature | -15 °C |
| Climate control norm or specification | EN 14813-1:2006 or equivalent |
| **Electrical** | |
| Primary voltage range 630 Vdc model | 400-850±5 Vdc  |
| Primary voltage range 350 Vdc model | 210-480±5 Vdc  |
| Primary voltage range 48 Vdc model | 36–60 Vdc |
| Primary voltage range 24 Vdc model | 19–32 Vdc |
| Secondary voltage range³ | 16-32 Vdc (only for 630 and 350 Vdc models) |
| Control system | CAN 2.0A/B, J1939, CANopen, remote on/off self-controlled or with HMI panel (see datasheet) |
| Power consumption 630 Vdc model | 0-3,5 kW |
| Power consumption 350 Vdc model | 0-3,5 kW |
| Power consumption 48 Vdc model | 0-3,2 kW |
| Power consumption 24 Vdc model | 0-2,8 kW |
| Power consumption secondary voltage | 0-0,75 kW (only for 630 and 350 models) |
| Degree of protection (components protected from water and dust) | IP45 (when mounted) |
| **Mechanical** | |
| Size | 1083 x 757 x 262 mm (L × W × H) |
| Weight | 68 kg |
| Material | Zinc-plated steel and aluminum cover |
| Colour | Powder-coated RAL 7035 |
| Sound level indoor (1 m, non-resonating mounting) | 58 dB(A) |
| Sound level outdoor (1 m, non-resonating mounting) | 63 dB(A) |
| Shock and vibration norm or specification | EN 61373 or equivalent |

¹ Tested in 30 °C 50% RH indoor / 35 °C outdoor. Cooling duty varies on climatic conditions and altitude, consult DC Airco for specific applications.
² Max 2 hours.
³ Secondary voltage of 24 Vdc is required for at least 5 minutes to provide afterrun time to cool down the electric heaters.

Made from 1,5 mm zinc-plated steel with a tough RAL 7035 powder coating, the housing resists corrosion and wear in harsh environments. An optional advanced controller can be added alongside the built-in PLC to enable remote system management and online monitoring.
Alternative voltage configurations may be available, along with mechanical and electrical customizations depending on your application and order volume.
Contact us to explore tailored solutions that meet your operational needs.

This rooftop air conditioner is designed for heavy-duty applications in operator cabs and electrical cabinets of mining vehicles. The robust housing is manufactured from powder-coated, zinc-plated steel and aluminum, finished in RAL 7035. The integrated controller displays all settings and fault codes. The compressor and refrigerant copper piping are additionally secured to the housing for increased durability.

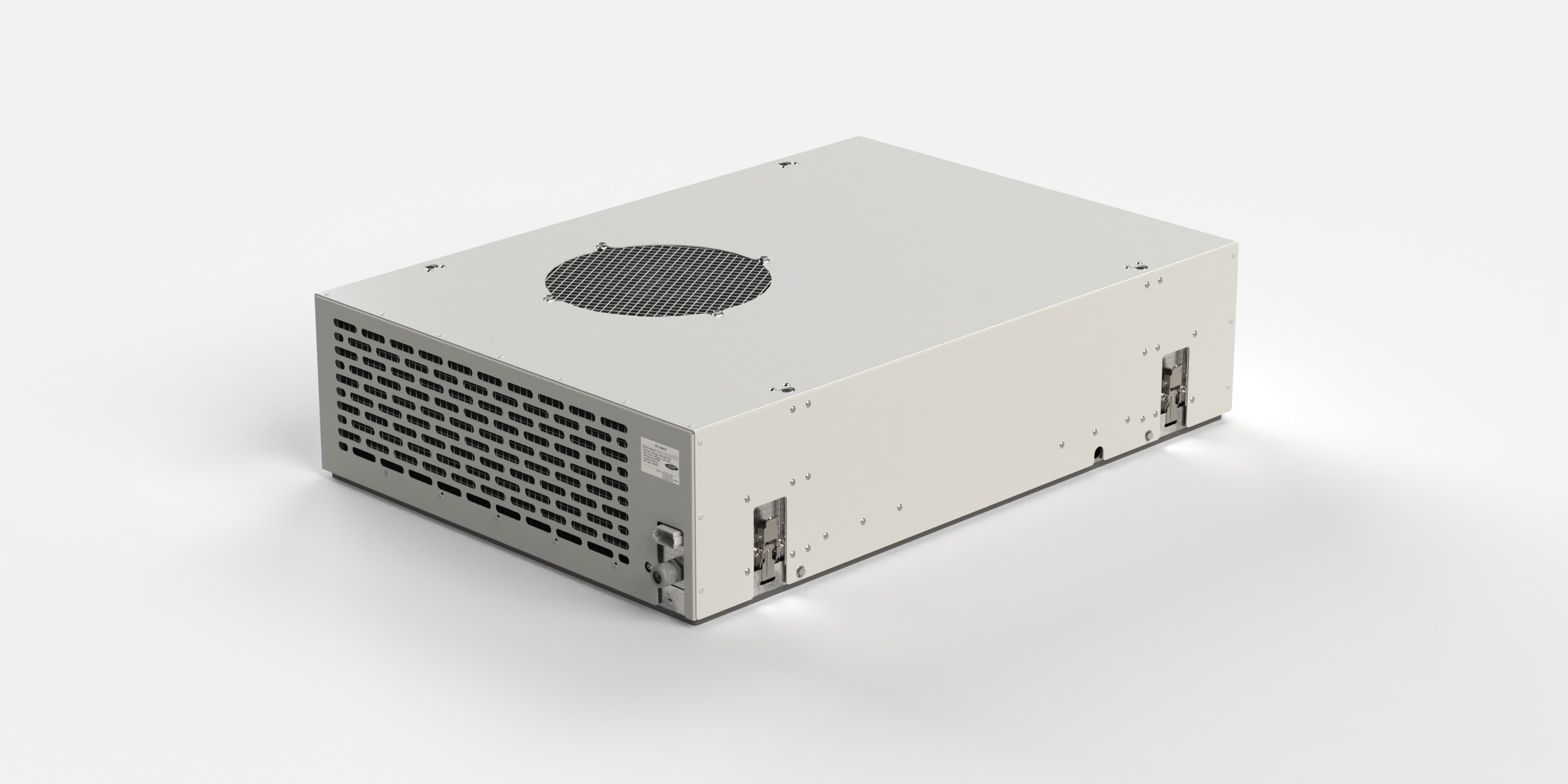

DC13500

| Parameter | Value |
|---------|--------------------|
| **Temp control** | |
| Cooling capacity 24 Vdc model¹ | 3,9 kW |
| COP cooling 24 Vdc¹ | 2,8 |
| Max airflow indoor (free blowing) | 660 m³/h |
| Refrigerant | R134A (non-flammable, A1, allowed in EU for mobile applications, cooling batteries and equipment). R1234yf or R513a on request |
| Max ambient temperature² | 50 °C |
| Min ambient temperature | 10 °C |
| Max indoor temperature | 40 °C |
| Min indoor temperature | 18 °C |
| Climate control norm or specification | EN 14813-1:2006 |
| **Electrical** | |
| Primary voltage range 24 Vdc model | 19–36 Vdc |
| Control system | Modbus R485, remote on/off or self-controlled |
| Power consumption 24 Vdc model | 0-1,5 kW |
| EMC norm or specification | Designed according to Directive 2004/108/EC; EN 50121-3-2:2006; EN 55011:2007/A2; EN 61000-4-2/6 (EMC) |
| Degree of protection (components protected from water and dust) | IP45 (when mounted) |
| **Mechanical** | |
| Size | 1135 x 710 x 280 mm (L × W × H) |
| Weight | 83 kg |
| Material | Zinc-plated steel |
| Colour | RAL 7035 |
| Sound level indoor (1 m, non-resonating mounting) | 58 dB(A) |
| Sound level outdoor (1 m, non-resonating mounting) | 55 dB(A) |
| Hazard level (according to EN 45545-2:2020+A1:2023) | HL1 |
| Shock and vibration norm or specification | Designed according to EN 61373 |

¹ Tested in 30 °C 50% RH indoor / 35 °C outdoor. Cooling duty varies on climatic conditions and altitude, consult DC Airco for specific applications.
² Simulating peak ambient temperature conditions during the day.

Made from 1,5 mm zinc-plated steel with a tough RAL 7035 powder coating, the housing resists corrosion and wear in harsh environments.
An optional advanced controller can be added alongside the built-in PLC to enable remote system management and online monitoring.
Alternative voltage configurations may be available, along with mechanical and electrical customizations depending on your application and order volume.
Contact us to explore tailored solutions that meet your operational needs.

This heavy-duty rooftop air conditioner is engineered for rolling stock operator cabs in locomotives, compliant with the high-level fire protection requirements of EN 45545-2, hazard level 3 (HL3). It includes an integrated PLC controller with diagnostic display for real-time system monitoring. Delivered with cable and hose kit for efficient installation.
