Electric and autonomous vehicles place high demands on thermal management systems for both battery performance and passenger comfort. Proper temperature control is essential to maximise battery lifespan, ensure safety, and deliver a comfortable driving experience in modern electric transport solutions.

DC Airco provides advanced thermal management solutions for battery and systems and Heating, Ventilation & Air Conditioning (HVAC) systems for drivers and passengers for a wide range of e-mobility applications, including autonomous shuttles, driverless vehicles, self-driving buses, and electric trucks. Our solutions are available in multiple configurations—such as rooftop units, split systems, and chillers—allowing seamless integration into different vehicle platforms. Custom configurations are available to match specific vehicle designs and operational requirements tailored to your requirements.

All systems are designed for compatibility with battery-powered architectures and operate across a wide range of nominal ac and dc voltages, including 24 Vdc, 48 Vdc, 72 Vdc, 110 Vdc, 350 Vdc, 630 Vdc, as well as 230 Vac and 400 Vac. Custom configurations are available to match specific vehicle designs and operational requirements tailored to your requirements—please contact us to discuss your specific requirements.

Air to Air

Liquid to Liquid

Air to Liquid

Heater

|  Parameter  | Value  |
| -------- | ------- |
| **Temp control**  | |
| Cooling capacity 630 Vdc model¹  | 6,9 kW  |
| COP cooling 630 Vdc model¹   | 2,4  |
| Cooling capacity 350 Vdc model¹  | 6,9 kW  |
| COP cooling 350 Vdc model¹   | 2,4  |
| Heating capacity 630 Vdc model²  | 5,9 kW  |
| COP heating 630 Vdc model²  | 3,6  |
| Heating capacity 350 Vdc model²  | 5,9 kW  |
| COP heating 350 Vdc model²  | 3,6  |
| Flow side A  | 18–30 l/min  |
| Flow side B  | 25–40 l/min  |
| Refrigerant  | R134a _non-flammable A1 refrigerant- allowed to be used in EU for mobile applications for cooling batteries and equipment. 1234yf on request._  |
| Max ambient temperature  | 50 °C  |
| Min ambient temperature  | -15 °C  |
| Max A in coolant temperature  | 38 °C  |
| Min A in coolant temperature  | -20 °C  |
| Max B in coolant temperature  | 65 °C  |
| Min B in coolant temperature  | -20 °C  |
| **Electrical**  | |
| Primary voltage range 630 Vdc model  | 400-850±5 Vdc  |
| Primary voltage range 350 Vdc model  | 210-480±5 Vdc  |
| Secondary voltage range  | 9–40 Vdc  |
| Power consumption 630 Vdc model  | 0-3,5 kW  |
| Power consumption 350 Vdc model  | 0-3,5 kW  |
| Power consumption secondary voltage  | 55 W  |
| Degree of protection(components to be protected from water and dust)  | IP66  |
| **Mechanical**  | |
| Size  | 251 x 346 x 344 mm (L x W x H)  |
| Liquid connections  | G¾” male  |
| Weight  | 21,5 kg  |
| Material  | Aluminium  |
| Colour  | Bare aluminium  |
| Sound level (1 m distance non-resonating mounting)  | 75 db(A) @ max compressor speed  |

¹ Liquid A in 30 °C 20 l/min, liquid B1 in 35 °C 30 l/min.
² Liquid A in 23 °C 20 l/min, liquid B1 in 15 °C 30 l/min.

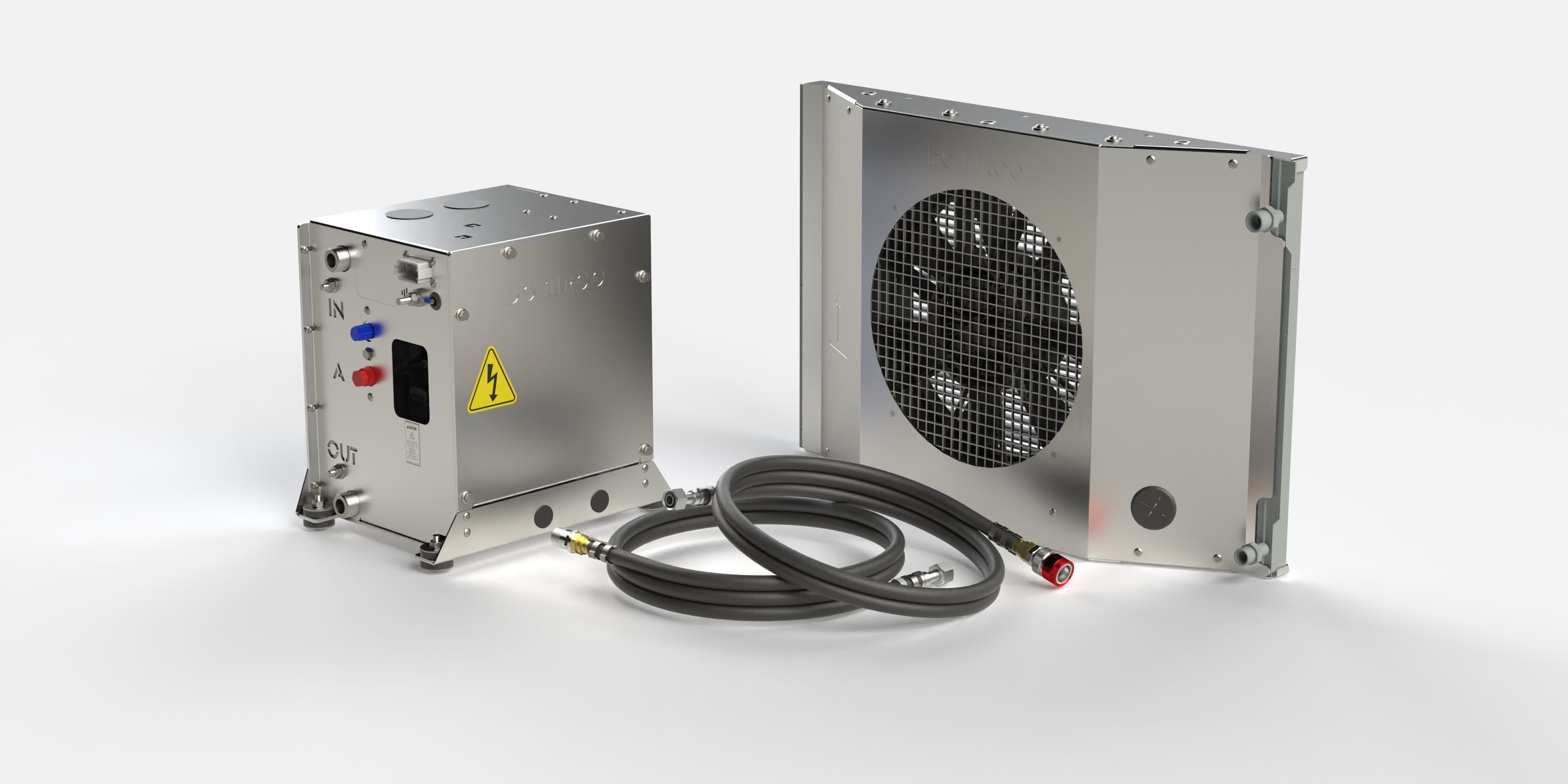

Redefining Battery Thermal Management System. Our compact reversible heat pump, designed for precision battery thermal management, ensures optimal temperatures for extended lifespan and utilises a cutting-edge liquid-liquid system. It ingeniously transforms your battery's heat into a valuable resource.

DC6001

24 Vdc

12 Vdc

630 Vdc

350 Vdc

|  Parameter  | Value  |
| -------- | ------- |
| Cooling capacity 630 Vdc model¹  | 6,9 kW  |
| COP cooling 630 Vdc model¹   | 2,6  |
| Cooling capacity 350 Vdc model¹  | 6,9 kW  |
| COP cooling 350 Vdc model¹   | 2,6  |
| Flow side A  | 18–30 l/min  |
| Refrigerant  | R134a _non-flammable A1 refrigerant- allowed to be used in EU for mobile applications for cooling batteries and equipment. 1234yf on request._  |
| Max ambient temperature  | 55 °C  |
| Min ambient temperature  | 10 °C  |
| Max A in coolant temperature  | 40 °C @ 55 °C ambient |
| Min A in coolant temperature  | 15 °C (for cooling)  |
| **Electrical**  | |
| Primary voltage range 630 Vdc model  | 400-850±5 Vdc  |
| Primary voltage range 350 Vdc model  | 210-480±5 Vdc  |
| Secondary voltage range  | 9-40 Vdc  |
| Control system  | CAN 2.0A/ B, J1939, CANopen, remote on/off self-controlled  |
| Power consumption 630 Vdc model  | 0-3,5 kW  |
| Power consumption 350 Vdc model  | 0-3,5 kW  |
| Power consumption secondary voltage  |  0,4 kW  |
| Degree of protection(components to be protected from water and dust)  | IP66  |
| **Mechanical**  | |
| Size body  | 251 x 346 x 344 mm (L x W x H)  |
| Size condensor  | 115 x 710 x 457 mm (L x W x H) |
| Liquid connections  | G¾” male  |
| Weight body  | 19 kg  |
| Weight condensor  | 9,5 kg |
| Refrigerant hose length  | 2 m  |
| Material body | Aluminium  |
| Material condensor | Aluminium  |
| Colour body  | Bare aluminium  |
| Colour condensor  | Bare aluminium  |
| Sound level indoor (1 m distance non-resonating mounting) | 69 db(A) @ maximum compressor speed  |
| Sound level outdoor (1 m distance non-resonating mounting)  | 70 db(A) @ 25 °C  |

¹ Liquid A in 30 °C 20 l/min, ambient temperature 35 °C.

DC6030

| Parameter | Value |
| -------- | ------- |
| **Temp control**  | |
| Cooling capacity 540 Vdc model¹  | 3 kW  |
| COP cooling 540 Vdc model¹  | 2  |
| Cooling capacity 360 Vdc model¹  |  3 kW  |
| COP cooling 360 Vdc model¹  | 2  |
| Cooling capacity 24 Vdc model¹  | 2,8 kW  |
| COP cooling 24 Vdc model¹  | 2,5  |
| Heating capacity 540 Vdc model² | 3,5 kW  |
| COP heating 540 Vdc model² | 3  |
| Heating capacity 360 Vdc model² |  3,5 kW  |
| COP heating 360 Vdc model² | 3 |
| Heating capacity 24 Vdc model² | 3,3 kW  |
| COP heating 24 Vdc model² | 3,5  |
| Heating capacity electric 540 Vdc model | 1,3 kW  |
| Voltage for heating capacity electric 540 Vdc model | 790 Vdc  |
| Heating capacity electric 360 Vdc model | 1,5 kW  |
| Voltage for heating capacity electric 360 Vdc model | 400 Vdc  |
| Heating capacity electric 24 Vdc model | N/A  |
| Voltage for heating capacity electric 24 Vdc model | N/A  |
| Max airflow evaporator (free blowing)  | 820 m³/h  |
| Refrigerant  | R134A _non-flammable. A1 refrigerant, allowed to be used in EU for mobile applications, cooling batteries and equipment._ R1234yf or R513a on request  |
| Max ambient temperature³  | 50 °C  |
| Min ambient temperature  | -15 °C  |
| Max indoor temperature  | 40 °C  |
| Min indoor temperature  | -15 °C  |
| **Electrical**  | |
| Primary voltage range 540 Vdc model  | 400-790±5 Vdc|
| Primary voltage range 360 Vdc model  | 240-420±5 Vdc  |
| Primary voltage range 24 Vdc model  | 20-32 Vdc  |
| Secondary voltage range  | 20-32 Vdc  |
| Control system  | Remote on/ off, HMI panel, Modbus R485, or self-controlled  |
| Power consumption 540 Vdc model | 0-4,5 kW  |
| Power consumption 360 Vdc model | 0-4,5 kW  |
| Power consumption 24 Vdc model | 0-2 kW  |
| Power consumption secondary voltage  | 0,65 kW (not needed for 24 Vdc model)  |
| Degree of protection(components to be protected from water and dust  | IP65  |
| **Mechanical** | |
| Size  | 825 x 860 x 355 mm (L x W x H)  |
| Weight  | 72 kg  |
| Material  | Aluminium  |
| Colour  | Powder-coated RAL 7035  |
| Sound level indoor (1 m distance non-resonating mounting)  | 72 dB(A) @ 80% ventilator speed  |
| Sound level outdoor (1 m distance non-resonating mounting)  | 68 dB(A) @ 30 °C |

¹ Tested in 30 °C 50% RH indoor / 35 °C outdoor. Cooling duty varies on climatic conditions and altitude, consult DC Airco for specific applications.
² Tested in 10 °C indoor / 10 °C outdoor.
³ Simulating peak ambient temperature conditions during the day.

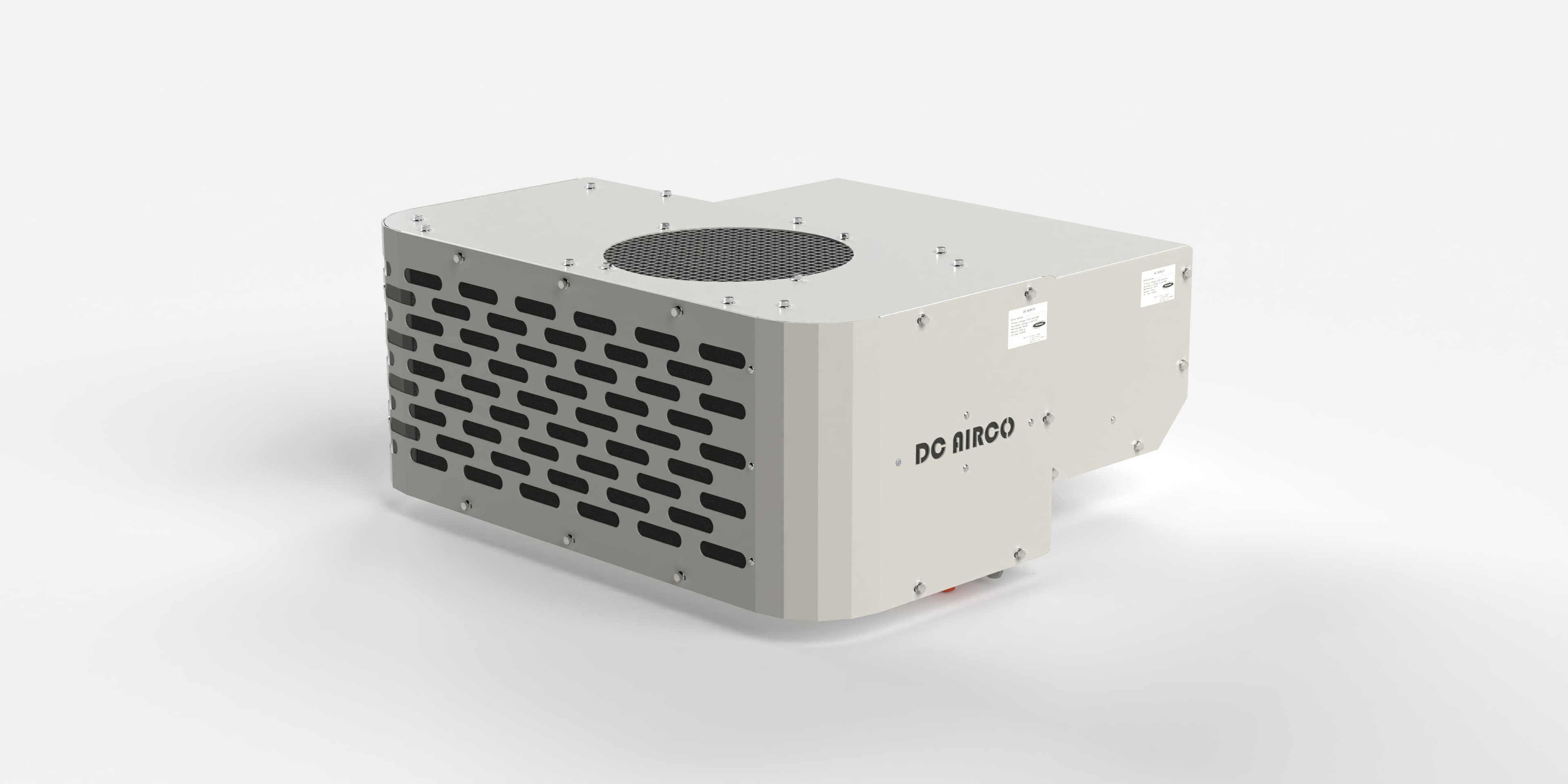

This monoblock air conditioner is designed for vehicles and offers efficient heating and cooling capabilities, operating between -20 °C and 45 °C through its internal heat pump circuit and e-heaters.
All the parts necessary for the unit are packed in a single cabinet, and the unit is fully operational when you unpack it. The cabinet is made of aluminium sheet metal, 1,5 mm thick, and has a grey RAL 7035 powder coating. All fastening components are stainless steel.

DC9031

540 Vdc

360 Vdc

|  Parameter  | Value  |
|---------|--------------------|
| **Temp control** | |
| Heating capacity electric 630 Vdc model¹ | 8 kW |
| Voltage for heating capacity electric 630 Vdc model | 550 Vdc |
| Flow side A |  5–30 l/min  |
| Max ambient temperature | 80 °C |
| Min ambient temperature | -40 °C |
| Max A in coolant temperature | 80  °C |
| Min A in coolant temperature | -40 °C |
| **Electrical** | |
| Primary voltage range 630 Vdc model | 400–850 Vdc |
| Secondary voltage range | 9–36 Vdc |
| Control system | CAN 2.0B 500 kb/s |
| Power consumption 630 Vdc model | 0-8 kW |
| Power consumption secondary voltage | 10 W |
| Degree of protection (components protected from water and dust) | IP66 |
| **Mechanical** | |
| Size | 311 x 153 x 106 mm (L x W X H) |
| Weight | 3,2 kg |
| Material | Plastic |
| Colour | Black |
| Sound level (1 m, non-resonating mounting) | 55 dB(A) |

¹ 15 l/min.

This compact electric liquid heater is engineered for efficient thermal management in both vehicle and industrial systems. It is designed to integrate seamlessly with existing control systems via CAN 2.0B communication.
The unit features built-in protection against over-temperature, overcurrent, and under-voltage conditions, ensuring safe and reliable operation even in harsh or demanding environments. Its versatile design allows for flexible installation and operation, making it suitable for a wide range of applications where precise temperature control is essential.

190139

600 Vdc

|  Parameter  | Value  |
|---------|--------------------|
| **Temp control** | |
| Heating capacity electric 350 Vdc model¹ | 5 kW |
| Voltage for heating capacity electric 350 Vdc model | 350 Vdc |
| Flow side A |  5–30 l/min  |
| Max ambient temperature | 80 °C |
| Min ambient temperature | -40 °C |
| Max A in coolant temperature | 80  °C |
| Min A in coolant temperature | -40 °C |
| **Electrical** | |
| Primary voltage range 350 Vdc model | 210–455 Vdc |
| Secondary voltage range | 9–36 Vdc |
| Control system | CAN 2.0B 500 kb/s |
| Power consumption 350 Vdc model | 0-5 kW |
| Power consumption secondary voltage | 10 W |
| Degree of protection (components protected from water and dust) | IP66 |
| **Mechanical** | |
| Size | 311 x 153 x 106 mm (L x W X H) |
| Weight | 3,2 kg |
| Material | Plastic |
| Colour | Black |
| Sound level (1 m, non-resonating mounting) | 55 dB(A) |

¹ 15 l/min.

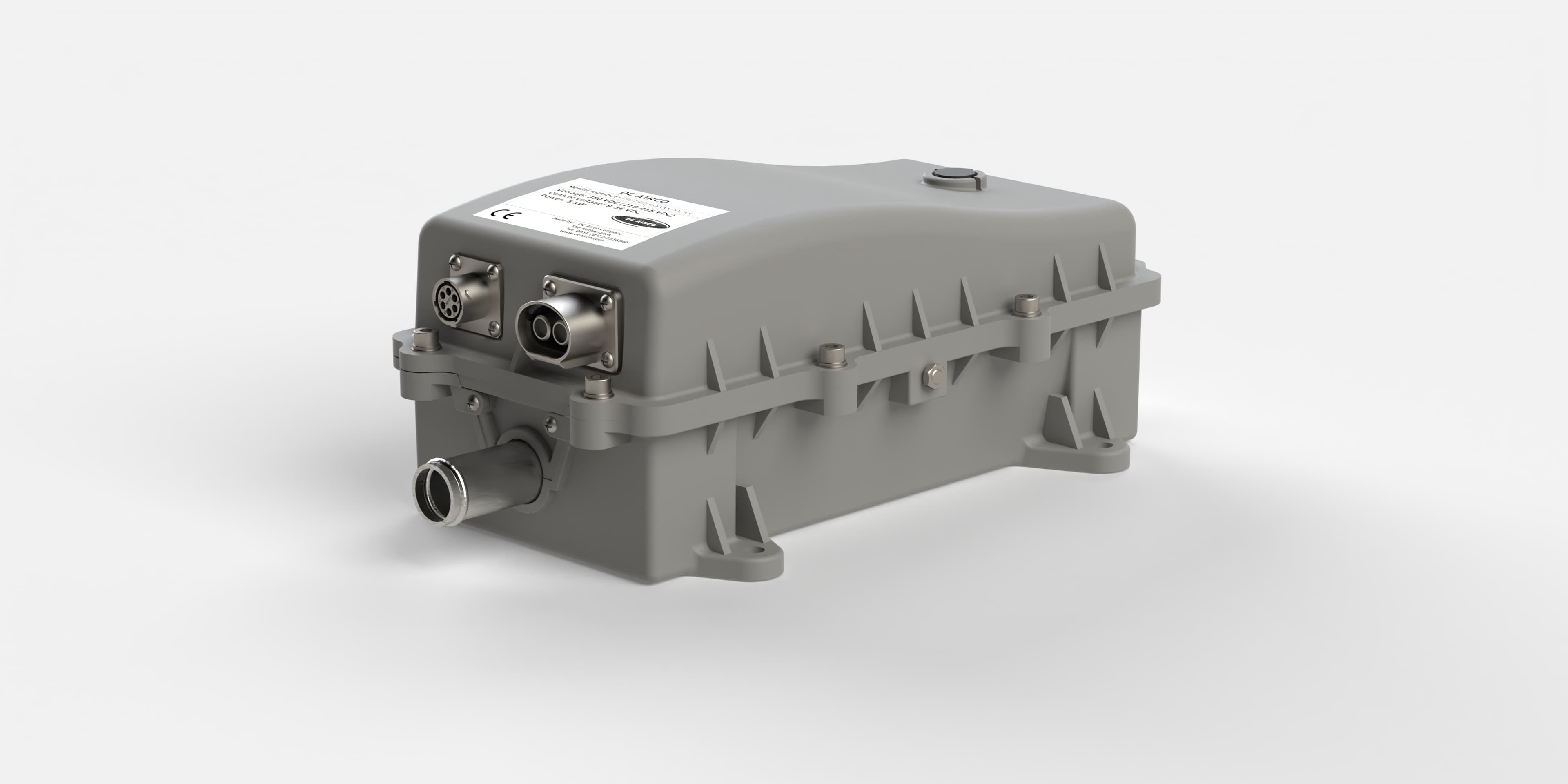

This compact 5 kW electric liquid heater is engineered for efficient thermal management in vehicle and industrial systems. It operates across 210–455 Vdc high voltage and 9–36 Vdc low voltage, with seamless integration via CAN 2.0B communication. With a 5–30 l/min flow range, IP67 protection, and built-in safeguards against over-temperature, overcurrent, and under-voltage, the unit ensures reliable performance in harsh environments.
