| Parameter | Value |
|---|---|
| Temp control | |
| Cooling Capacity 24 Vdc model¹ | 3,1 kW |
| COP cooling 24 Vdc model¹ | 3,5 |
| Max airflow indoor (free blowing) | 800 m³/h |
| Refrigerant | R134a non-flammable A1 refrigerant- allowed to be used in EU for mobile applications for cooling batteries and equipment. 1234yf on request. |
| Max ambient temperature | 50 °C |
| Min ambient temperature | 10 °C |
| Max indoor temperature | 40 °C |
| Min indoor temperature | 18 °C (will not cool lower) |
| Climate control norm or specification | EN 14813-1:2006 |
| Electrical | |
| Primary voltage range 24 Vdc model | 16-32 Vdc |
| Control system | Modbus R485, remote on/off or self-controlled |
| Power consumption 24 Vdc model | 0-1,5 kW |
| EMC norm or specification | Designed according to EN50121-3-2:2006 |
| Degree of protection(components to be protected from water and dust) | IP55 (condensor), IP20 (evaporator) and IP43 (control box) |
| Mechanical | |
| Size evaporator | 28 x 670 x 396 mm (L x W x H) |

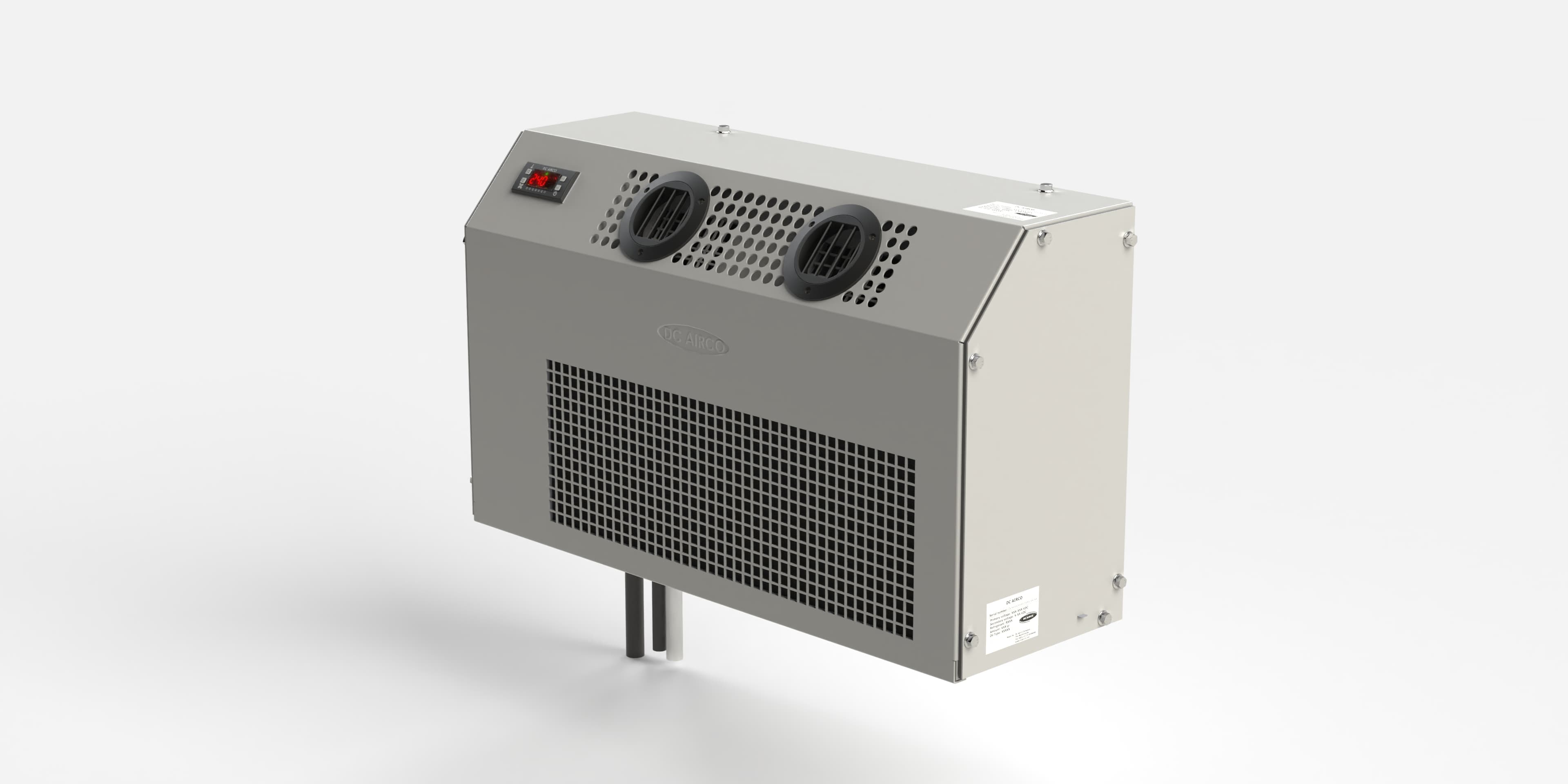

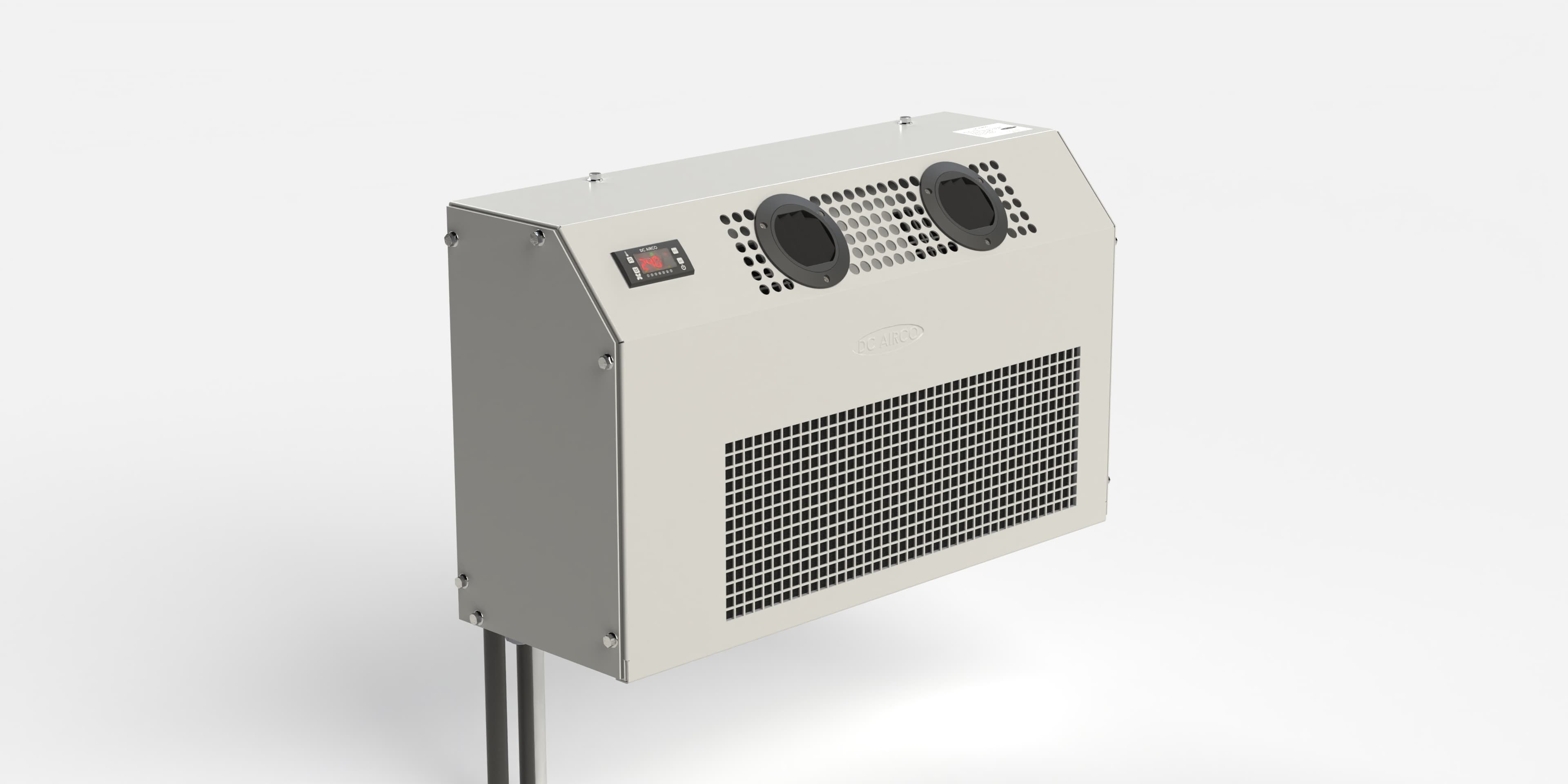

| Size condensor | 465 x 898 x 385 mm (L x W x H) |

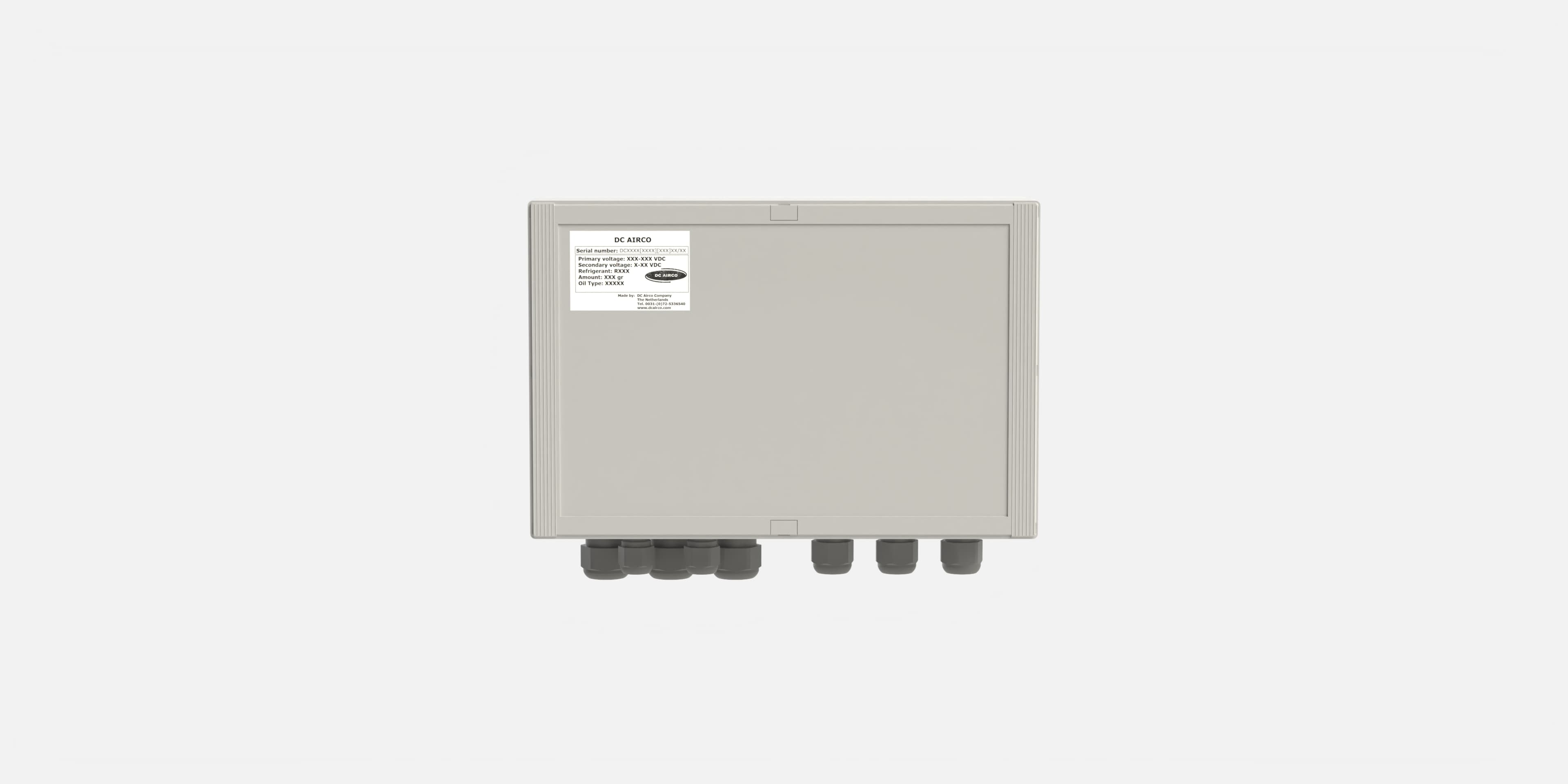

| Size control box² | 100 x 300 x 200 mm (L x W x H) |
| Weight evaporator | 30 kg |
| Weight condenser | 80 kg |
| Weight control box | 7 kg |
| Refrigerant hose length | 2,7 m |
| Material evaporator | Zinc-plated steel |
| Material condenser | Zinc-plated steel |
| Material control box | Aluminum |
| Colour evaporator | Powder-coated RAL 7035 |
| Colour condenser | Powder-coated RAL 7035 |
| Colour control box | Powder-coated RAL 7035 |
| Sound level indoor (1 m distance non-resonating mounting) | 65 dB(A) |
| Sound level outdoor (1 m distance non-resonating mounting) | 73 dB(A) |
| Hazerd level (according to EN 45545-2 2013 ) | HL1 |
| Shock and vibration norm or specification | Designed according to EN61373 |
¹27 °C 50% RH indoor / 35 °C outdoor. Cooling duty varies on climatic conditions and altitude- consult the factory for specific applications.
²Needs to be installed inside.

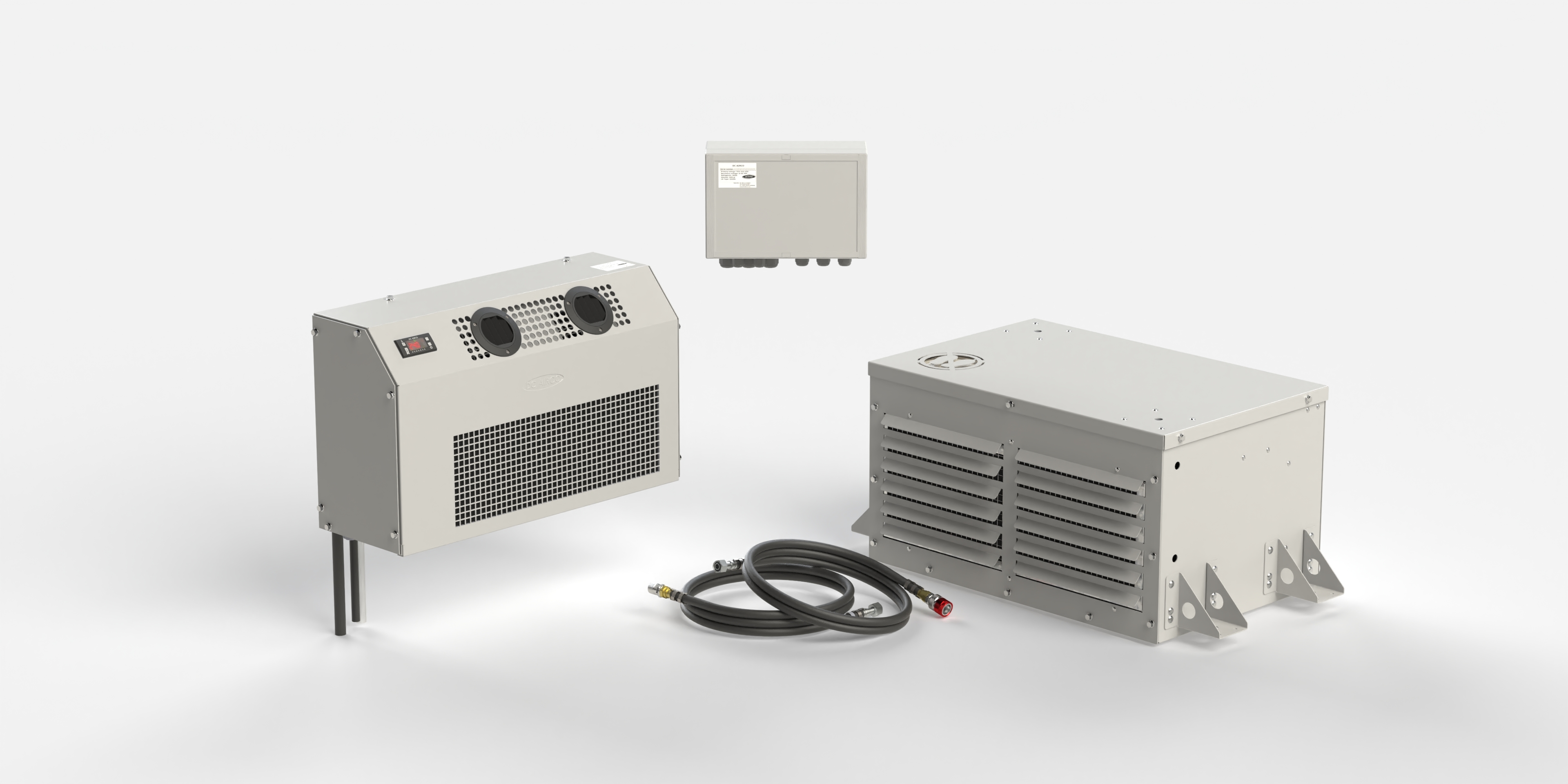

Made from 1,5 mm zinc-plated steel with a tough RAL 7035 powder coating, the housing resists corrosion and wear in harsh environments. The split-unit system features prefilled refrigerant hoses, quick-connect fittings, and a full cable kit for fast, seamless installation. An optional advanced controller can be added alongside the built-in PLC to enable remote system management and online monitoring. Alternative voltage configurations may be available, along with mechanical and electrical customizations depending on your application and order volume. Contact us to explore tailored solutions that meet your operational needs.
