| Parameter | Value |
|---|---|
| Temp control | |
| Cooling capacity 24 Vdc model¹ | 3,9 kW |
| COP cooling 24 Vdc¹ | 2,8 |
| Max airflow indoor (free blowing) | 660 m³/h |
| Refrigerant | R134A (non-flammable, A1, allowed in EU for mobile applications, cooling batteries and equipment). R1234yf or R513a on request |
| Max ambient temperature² | 50 °C |
| Min ambient temperature | 10 °C |
| Max indoor temperature | 40 °C |
| Min indoor temperature | 18 °C |
| Climate control norm or specification | EN 14813-1:2006 |
| Electrical | |
| Primary voltage range 24 Vdc model | 19–36 Vdc |
| Control system | Modbus R485, remote on/off or self-controlled |
| Power consumption 24 Vdc model | 0-1,5 kW |
| EMC norm or specification | Designed according to Directive 2004/108/EC; EN 50121-3-2:2006; EN 55011:2007/A2; EN 61000-4-2/6 (EMC) |
| Degree of protection (components protected from water and dust) | IP45 (when mounted) |
| Mechanical | |
| Size | 1135 x 710 x 280 mm (L × W × H) |
| Weight | 83 kg |
| Material | Zinc-plated steel |
| Colour | RAL 7035 |
| Sound level indoor (1 m, non-resonating mounting) | 58 dB(A) |
| Sound level outdoor (1 m, non-resonating mounting) | 55 dB(A) |
| Hazard level (according to EN 45545-2:2020+A1:2023) | HL1 |
| Shock and vibration norm or specification | Designed according to EN 61373 |
¹ Tested in 30 °C 50% RH indoor / 35 °C outdoor. Cooling duty varies on climatic conditions and altitude, consult DC Airco for specific applications.
² Simulating peak ambient temperature conditions during the day.

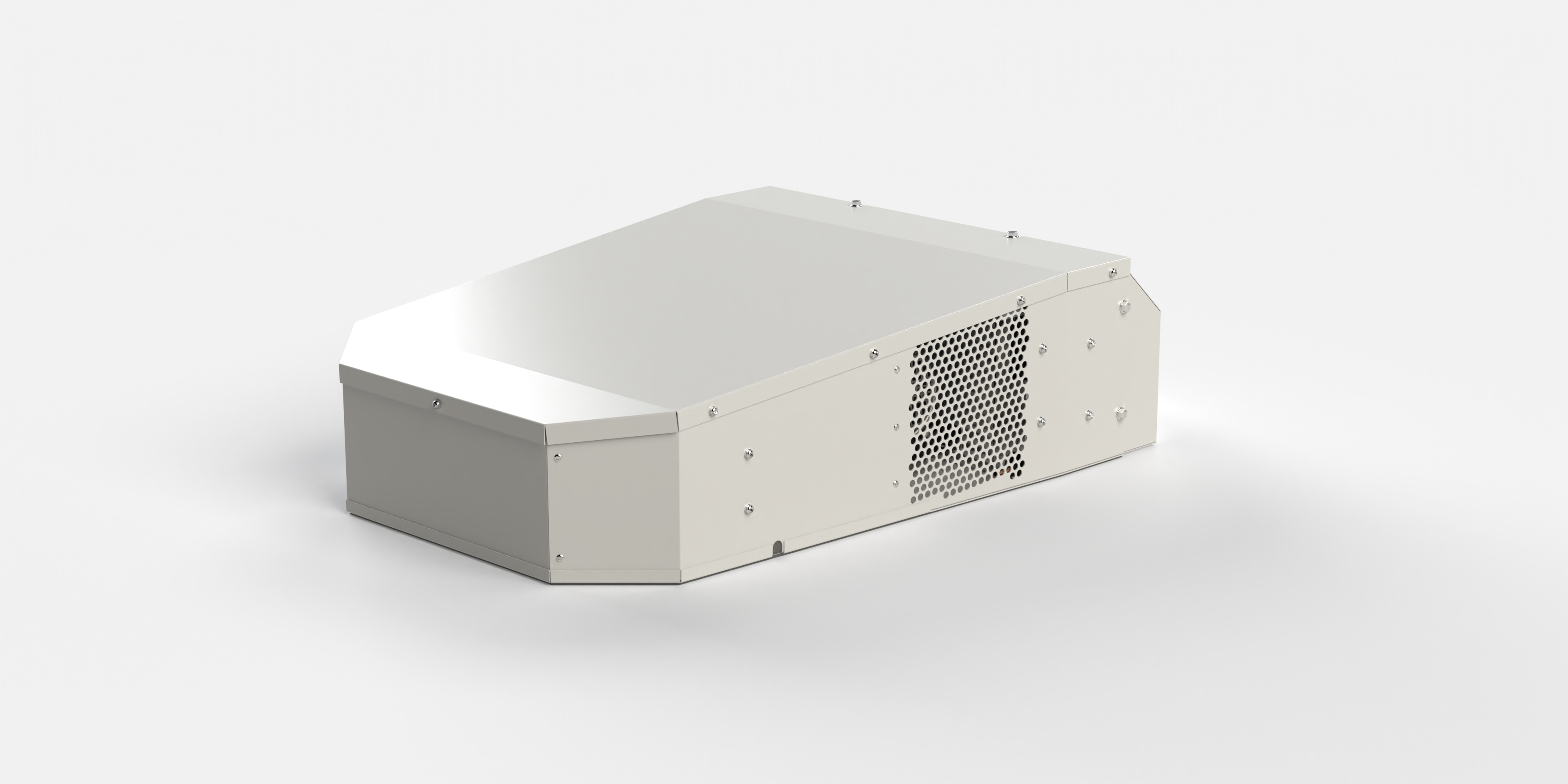

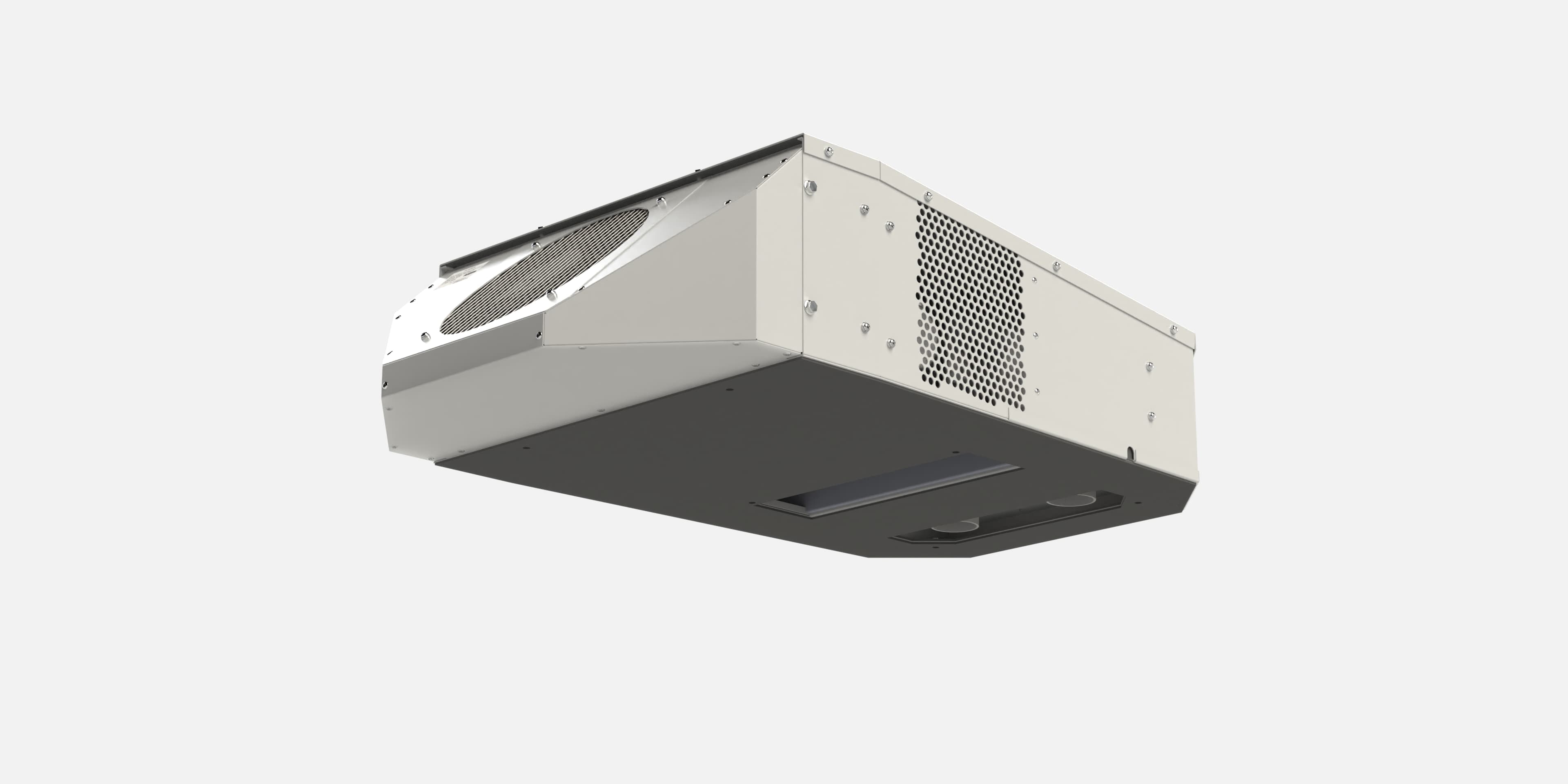

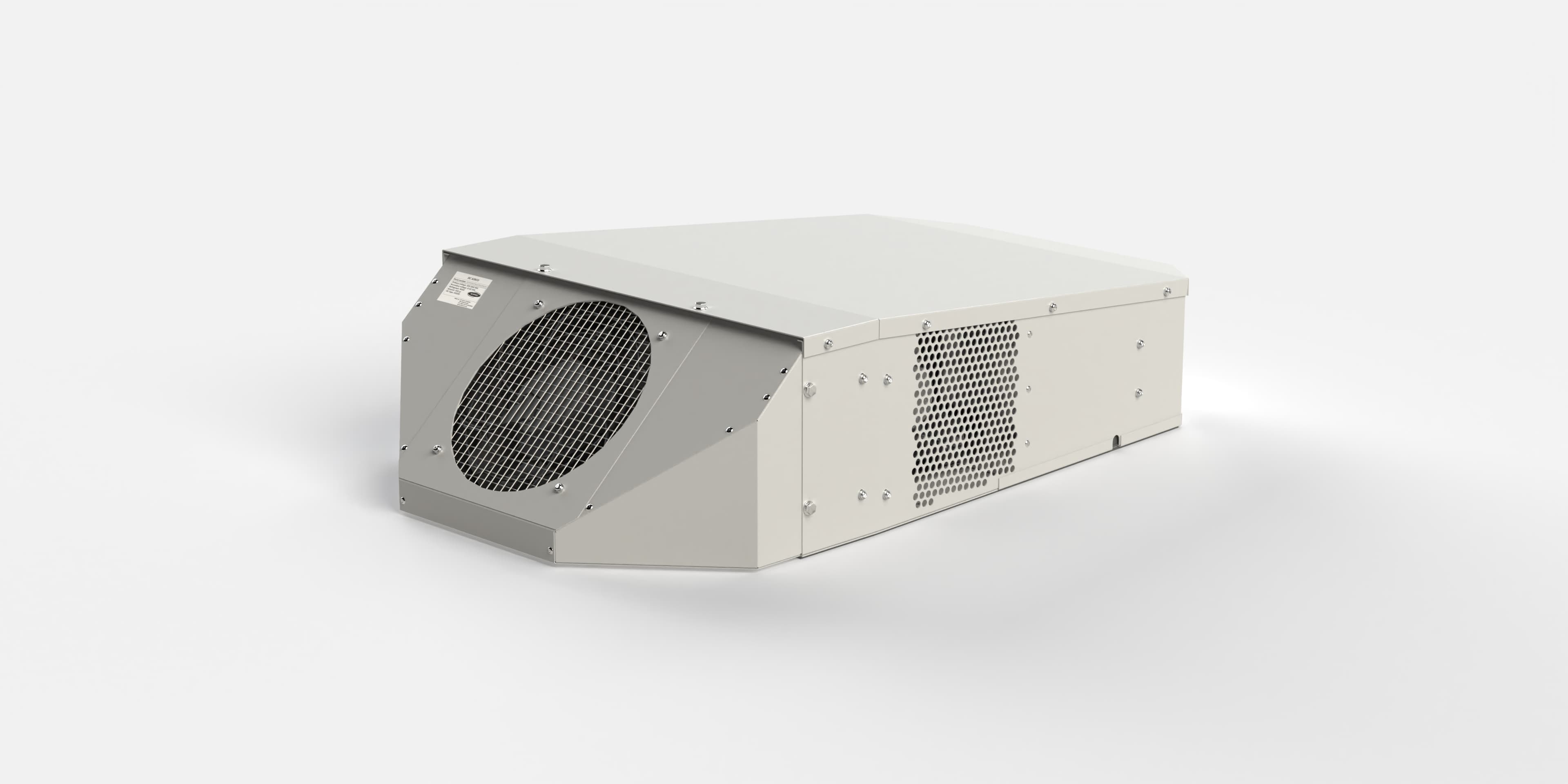

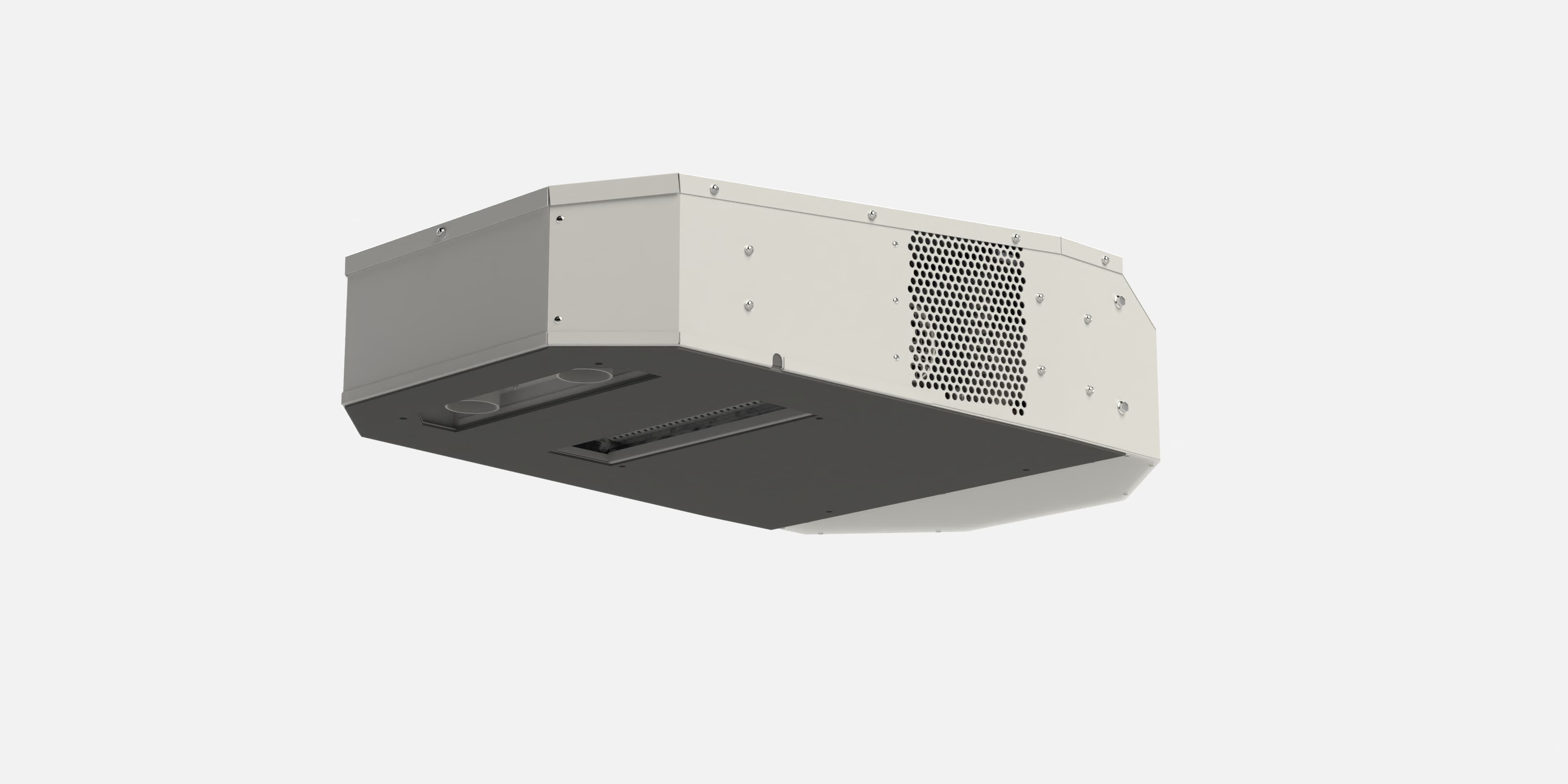

Made from 1,5 mm zinc-plated steel with a tough RAL 7035 powder coating, the housing resists corrosion and wear in harsh environments. An optional advanced controller can be added alongside the built-in PLC to enable remote system management and online monitoring. Alternative voltage configurations may be available, along with mechanical and electrical customizations depending on your application and order volume. Contact us to explore tailored solutions that meet your operational needs.
